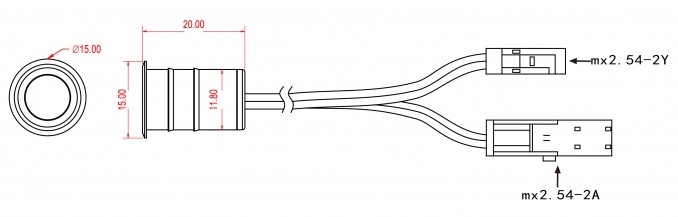

◇ Outilne Drawing
◇ The product introduce

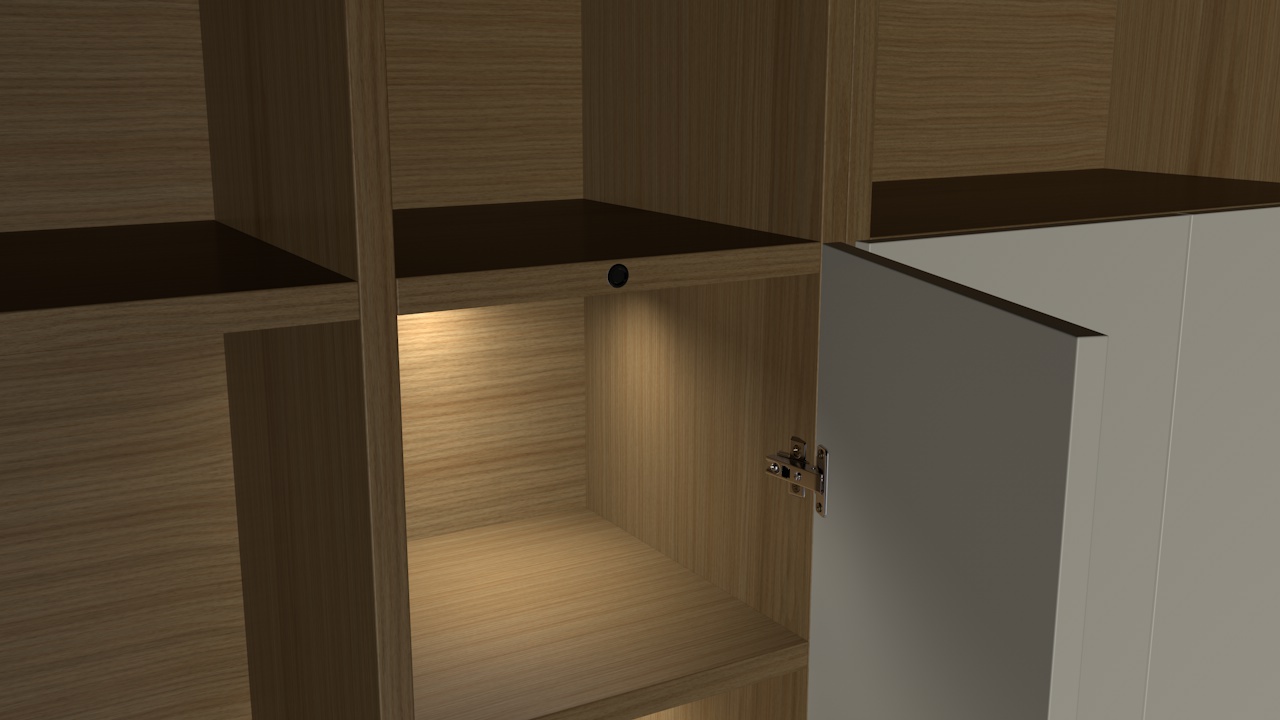

★ Function: Connected with LED lights, when the door is opened / closed, the LED lights gradually turn on / off.
★ Small size, more adaptable to installation.
★ The metal shell is more textured and more suitable for use with high-end furniture lamps.
◇ Specifications
Model：WF-LC12B Input voltage DC5-24V（±5%） Max. output current 3A Max. load power 36W @12V Installation way 嵌入式 Hole size φ12×H22mm Sensing distance 3-6CM Operation temp. -20~+50° Storage temp. -20~+60° Material AL Flammability 94V-0

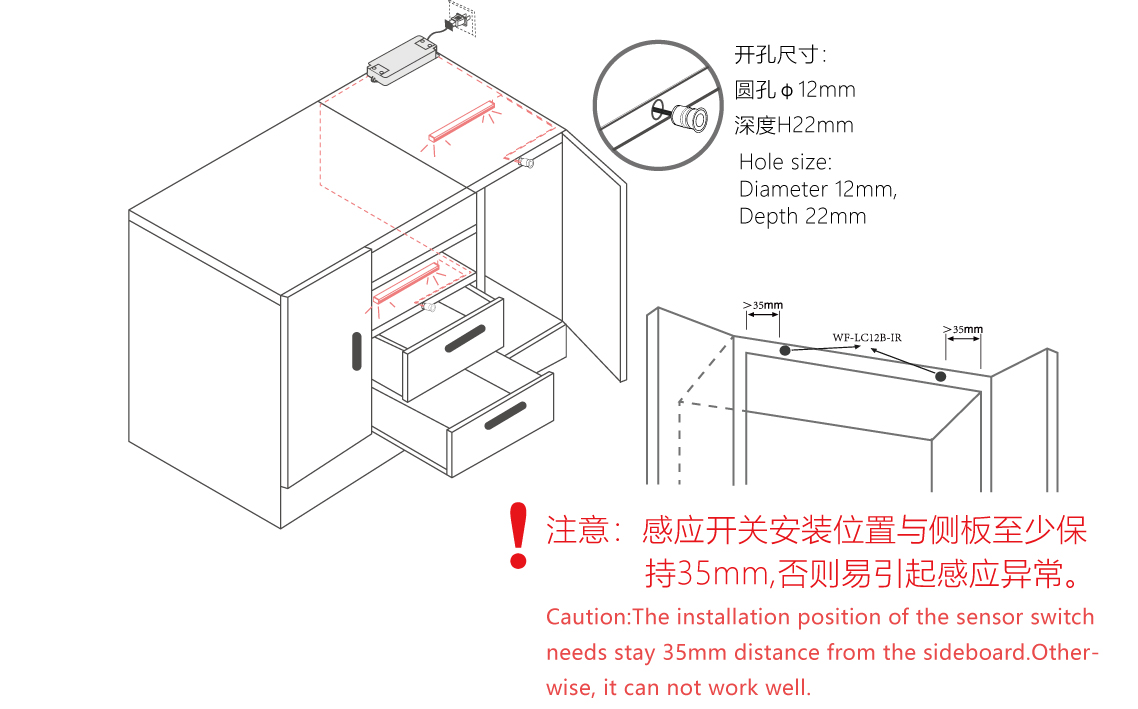

◇ 安装说明 Installation
1、 穴開け（穴あけ寸法：φ12mm,h22mm）Open a hole(Size:φ16mm,h18mm)
2、 将感应开关安进开好的孔内
Insert the sensor switch into the hole
3、 将感应开关输出端连接LED灯具
Connect the sensor switch output to the LED light.
4、 将感应开关输入端连接变压器通电即可
Connect the sensor switch input to the power supply.

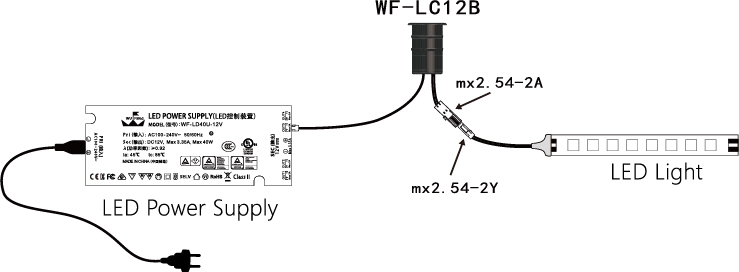

◇ 接线图 Connection Diagram
★接线示意（connection Diagram）
