60W超薄LED电源 WF-LD60U-12V/WF-LD60U-24V

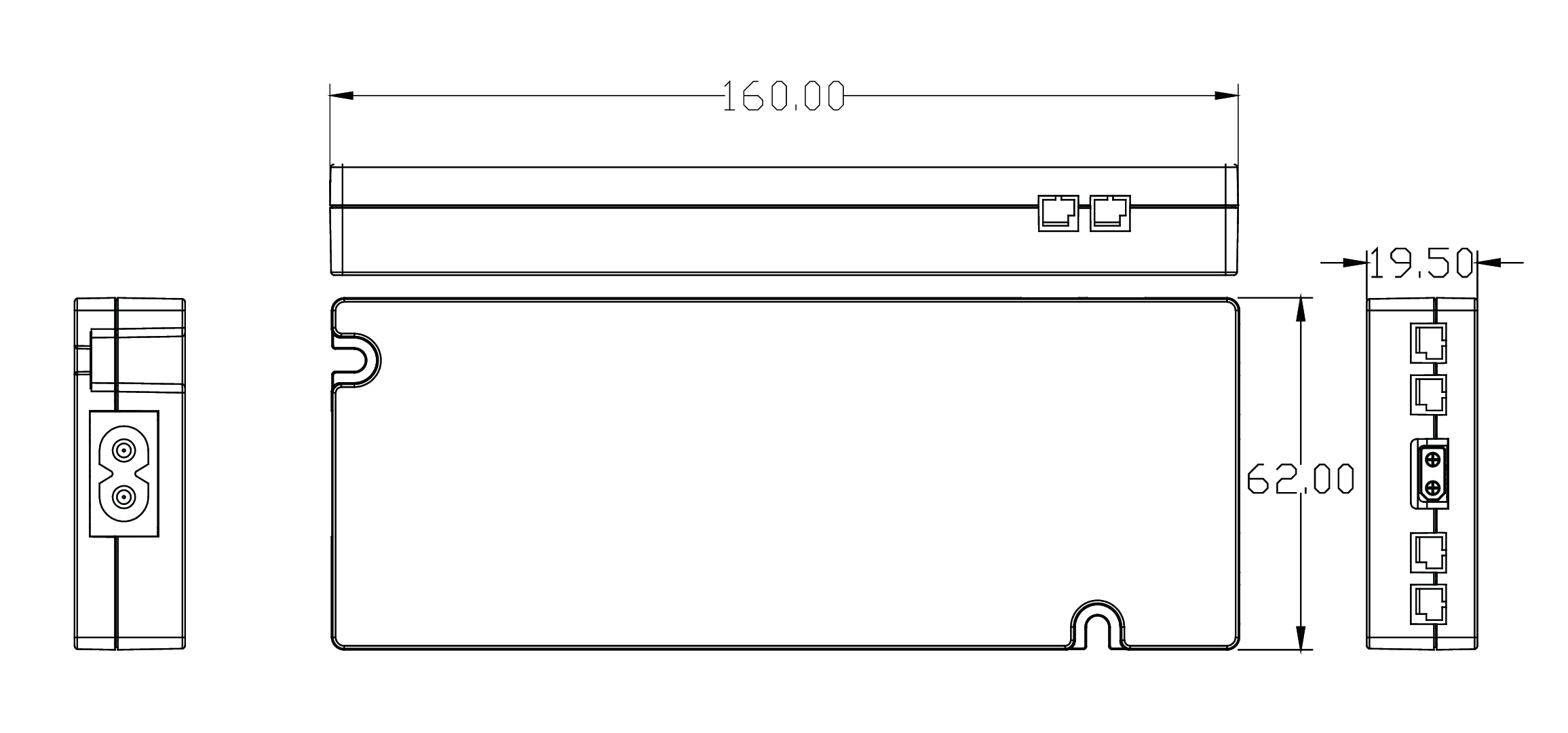

◇ Outilne Drawing

★ Our power supply is CE,KCC,FCC,RCM,MM,IV,UL,PSE,CCC,,RoHS,SELF certificated.

◇ Characteristic

★ Small size and light weight.

★ Ultra-low standby power consumption (≤75mW).
★ High conversion efficiency (up to ≥89%).

★ Low output ripple (≦ 120mVp-p), can be used with most LED controllers.

★ Perfect short circuit, overload, overvoltage and overheat protection.

★ Wide input voltage range.

★ Built-in Tmall Genie module

◇ Introduction

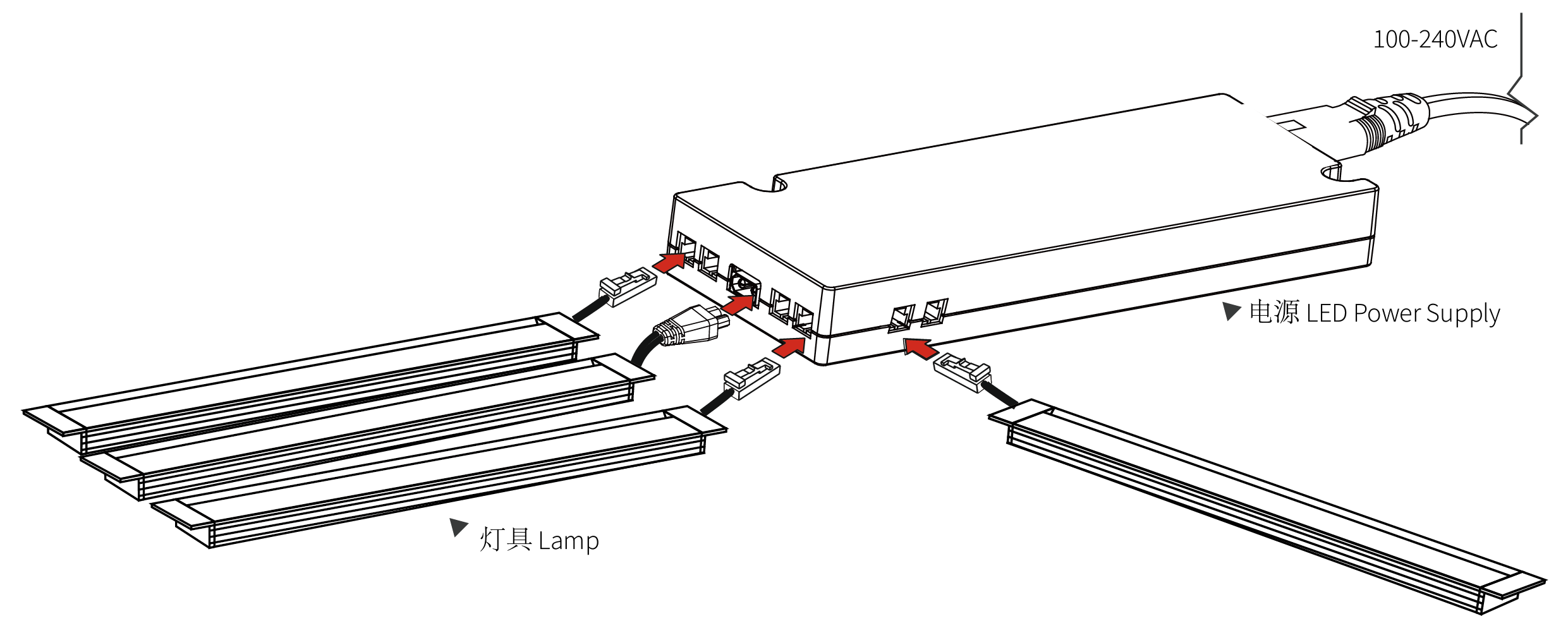

This product is an ultra-thin constant voltage LED power supply, its main features are small size, light weight and easy installation, and a wide input voltage range, built-in active PFC function, built-in 4 port DuPont terminal + 1 port high current terminal output connection LED More convenient to use, ultra-low standby power consumption (≦ 75mW) and high conversion efficiency (up to ≧ 89%), low output ripple (≦ 120mVp-p) can be used with most LED controllers, perfect short circuit and overload 、 Over-pressure and over-heat protection, work in -20 ～ + 45 ℃ environment, natural air-cooled shell Tc temperature ≦ + 85 ℃.
