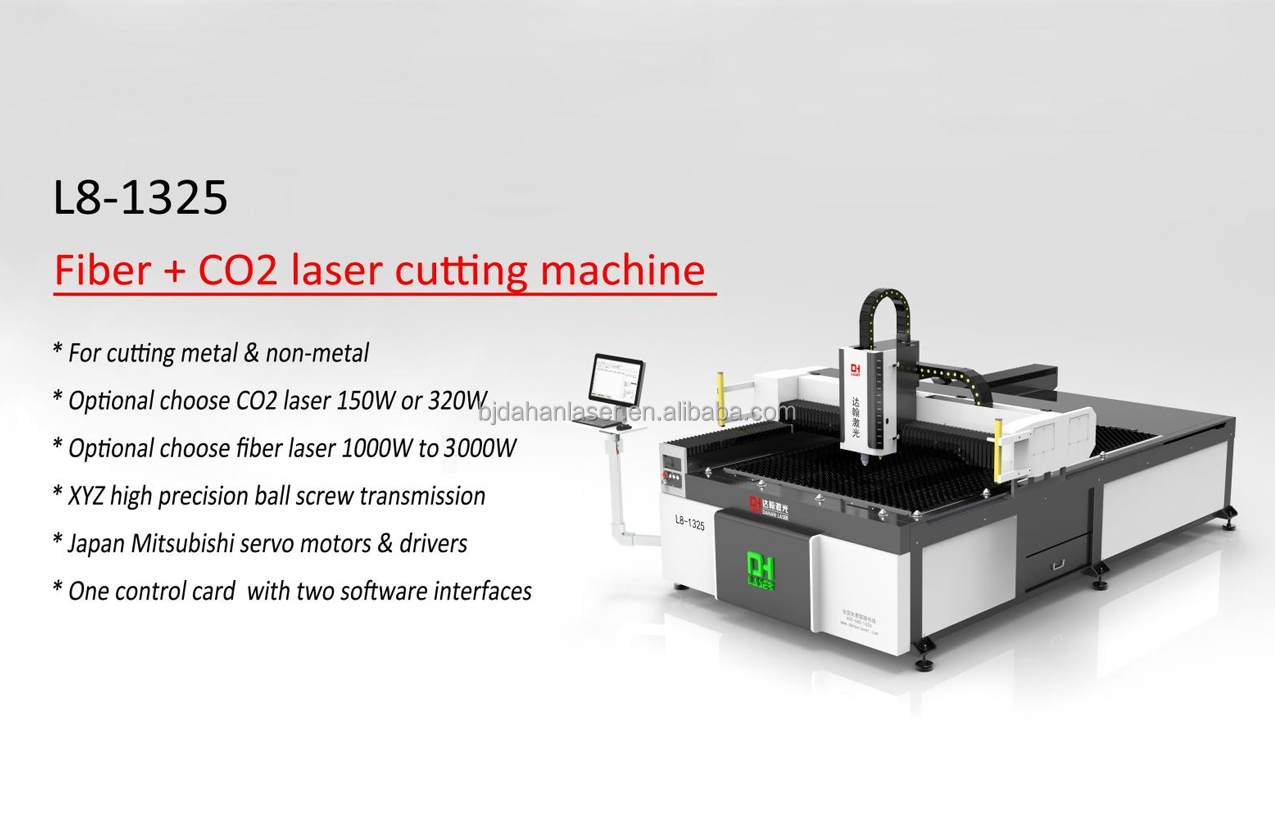

DAHAN L8-1325 METAL AND NONMETAL LASER CUTTING MACHINE
This DAHAN L8-1325 laser machine is widely used in the processing of high precision high polished organic materials/acrylic cutting, display panel, display cabinet, showcase, lighting industry, photo frame woodworking industry, architectural model, handicrafts, decoration industry, sign advertising words making, LED lighting box, aerospace industry, machinery, ship, elevator industry and metal sheet cutting industry, etc.
Suitable for cuttingNONMETAL: organic materials/acrylic, plywood, MDF, fabric, leather, paper, etc.
METAL: Stainless steel, carbon steel, galvanized sheet, etc.
Main Configuration & Advantages
Main Configuration & Advantages
metal cutting source - fiber optical

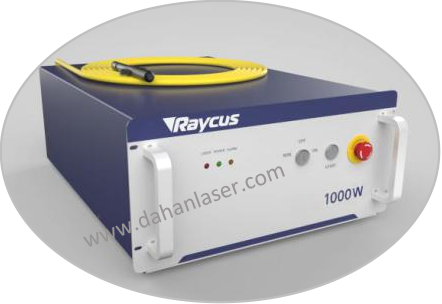

Equip Fiber generator - Raycus OR MAX or JPT!
High Electro-optical Conversion Efficiency; Sheet Cutting Efficiency; Altitude Stress-resisting Capacity; Customized Output Fiber Length; Long life ! Water Cooling Maintenance-free Operation; Wide Modulation Frequency Range.Optional to choose 1000W, 1500W,2000W,3000W,6000W !
NON metal cutting source - CO2 laser tube

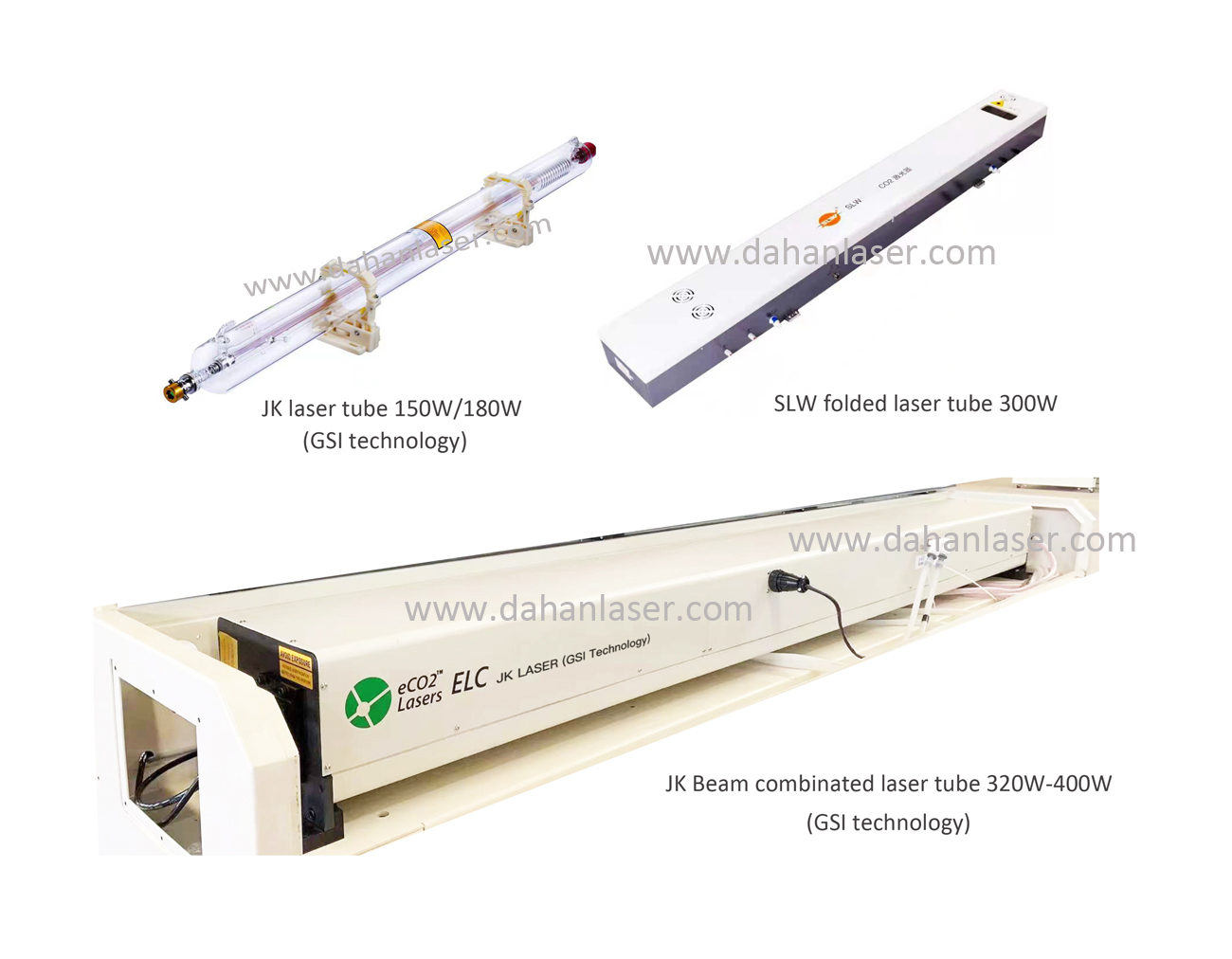

There are 3 type of laser tubes can be choosen.
JK single laser tube 150W-180W, cut acrylic sheet ≤30mm;
SLW folded laser tube 300W, cut acrylic ≤30mm;
JK beam combinated laser tube 320W, cut acrylic ≤40mm, which is the most stable and powerful laser tube in China.

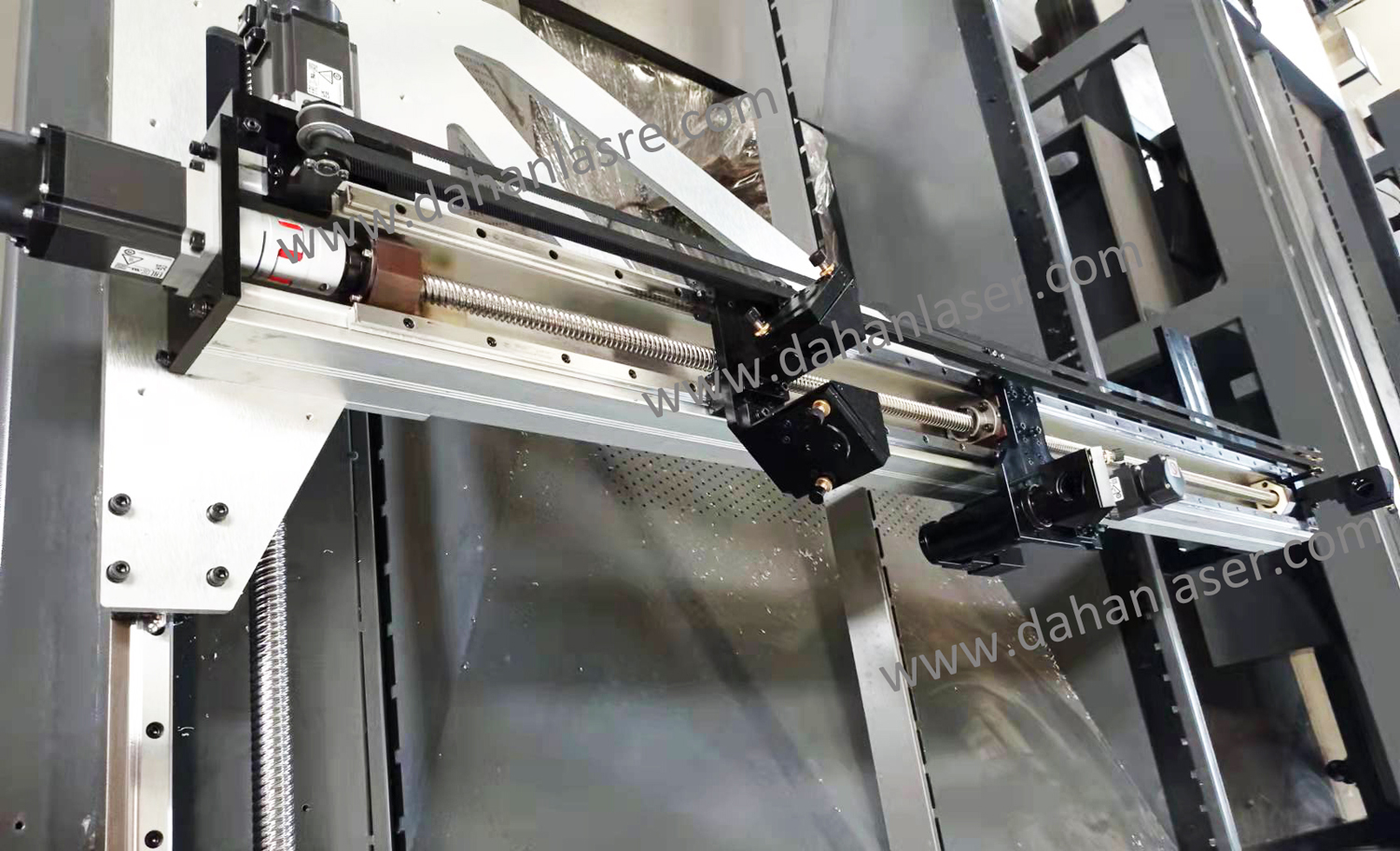

High precision transmission
This machine XYZ adopt ball screw transmission.
It is the perfect transmission to cut acrylic with polished effect. And it is very high accurate on cutting metal sheet.

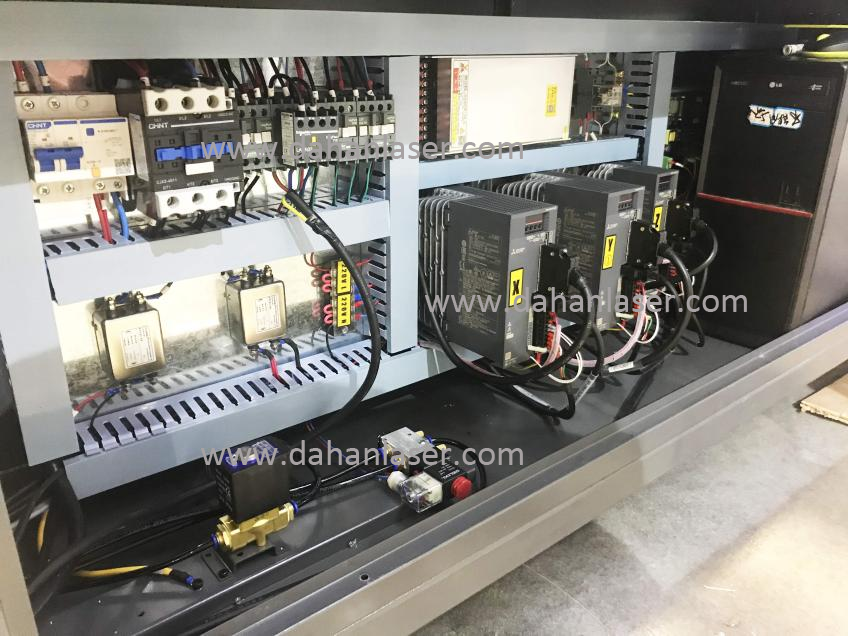

Servo system- Japan Mitshubishi servo motors& drivers
This machine XYZ adopt well known brand Japan Mitshubishi servo motors and drivers, which is very stable.The failure rate is almost zero.

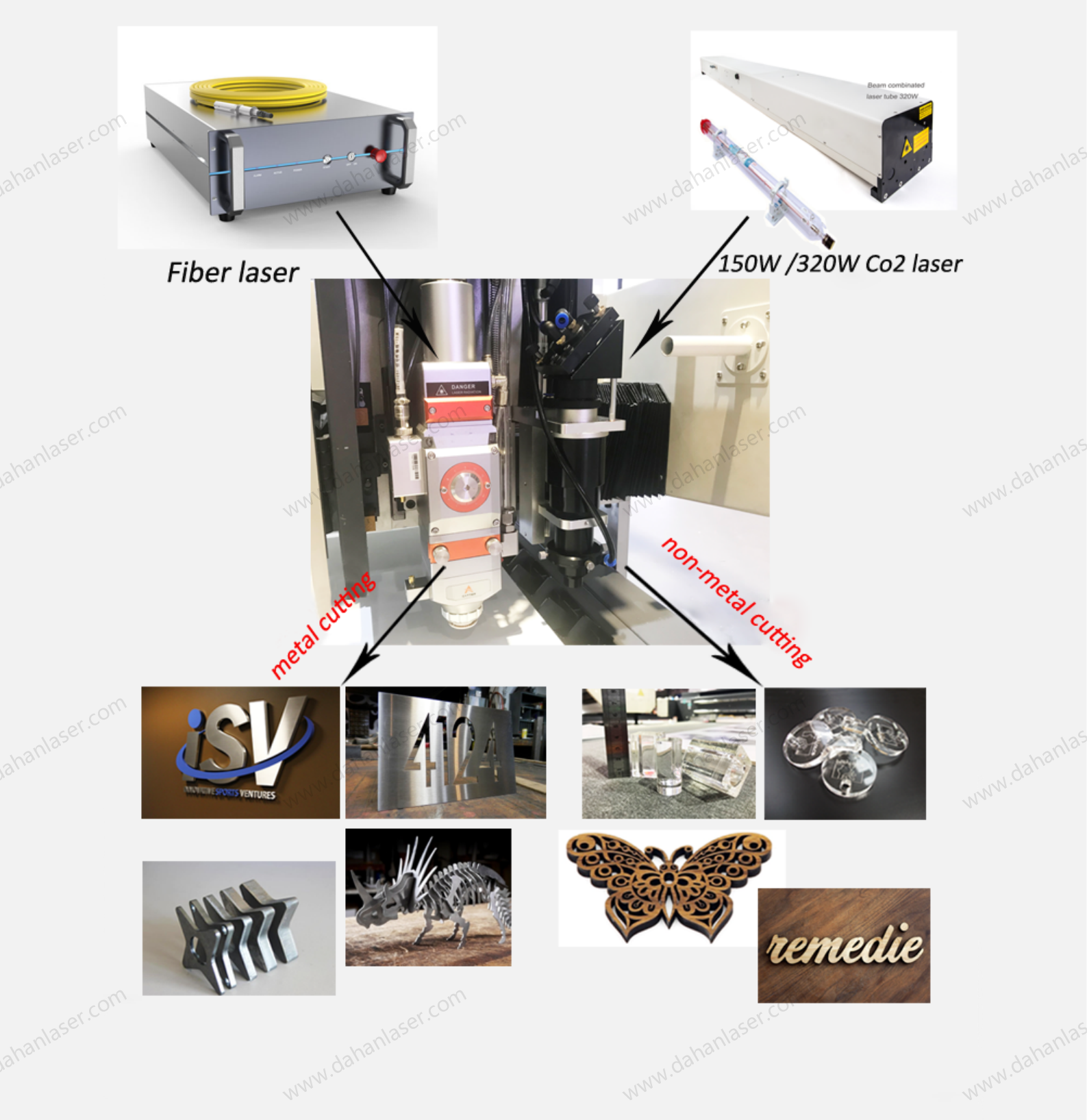

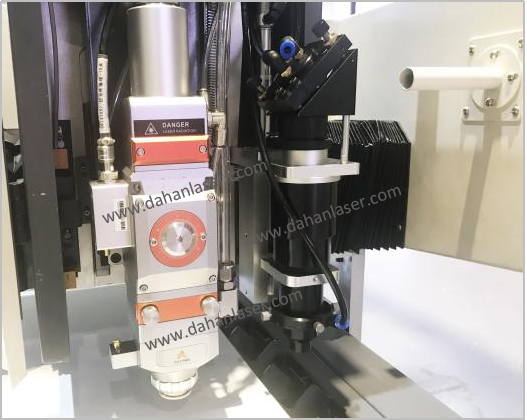

Two laser heads
This machine equip two laser heads,
One for cutting metal, fiber laser cutting head; Another is for cutting non-metal, DAHAN laser research and develop independently, suitable to install differet size of focus heads.
Control system- Au3tech software
Customized Au3Tech metal & non-metal cutting system.There is single toggle switch between metal &non-metal cutting functions.
It is very easy to switch different cutting modes.

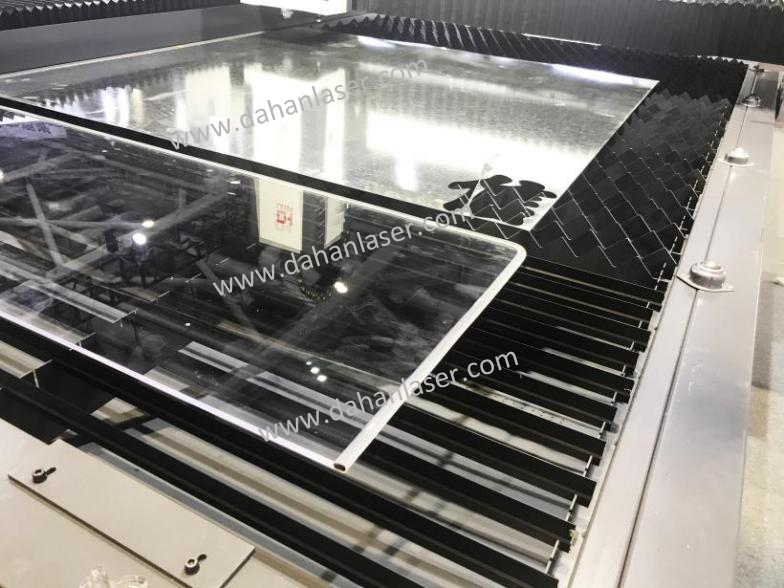

Two different working tables
We DAHAN laser design two different working table to cut metal or nonmetal;
The CS sharp triangulate metal bars are for fiber laser cutting metal sheets;
The aluminum bars are for CO2 laser to cut non-metal sheets.
Machine parameters
Machine parameters
ITEM | L8-1325 |
Boundary dimension | 3900*2715*1650 mm |
Max working size | 1300*2500 mm |
Fiber generator power | 1000W, 1500W, 3000W, 6000W |
CO2 laser power | Optional Single tube 150W, 180W,
folded tube 300W (not advice)
beam combination tube 320W,400W |
Fiber Laser weave length | 1080 nm ±5 |
Fiber Line width | 0.1MM |
Laser Class | Class 4 laser |
Cutting speed | 20 meter/min |
Position accuracy | ±0.03mm |
Auxiliary gas For cutting metal | AIR, OXYGEN, NITROGEN |
Cool gas for cutting non-metal | Air |
Fiber Aiming location | Red light |
Cooling | Industrial water cooling |
Electricity | 220V, single phrase, 50HZ/60HZ, ±5% |
Continuous working | 24 hours |
|
|

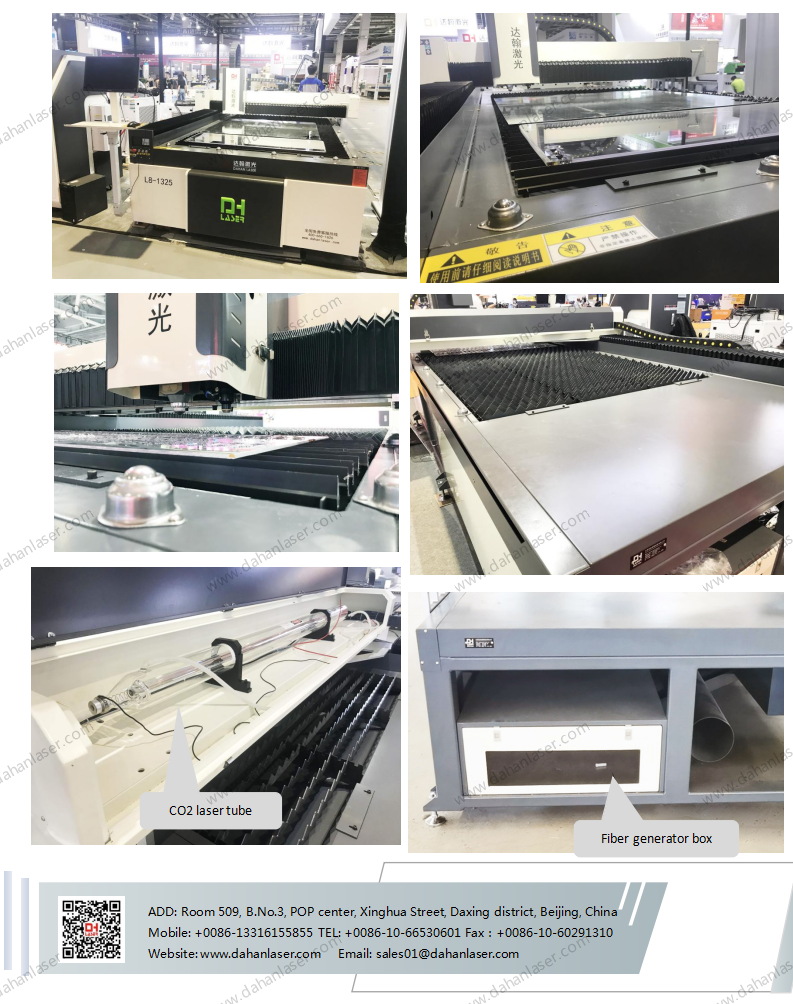

Machine pictures
Machine pictures

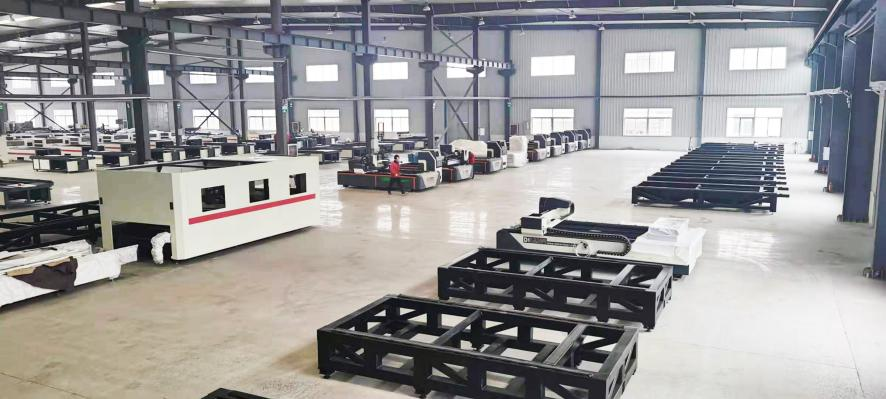

Why Choose Us
Why Choose Us
We are so professional on researching and producing metal and nonmetal cutting machine
Dahan laser found in 2001. From 2010, we are researching how to produce the metal and non-metal laser cutting machine well. Until now, we have 6
generations of CO2 mixed laser cutting machine, 3
generations of fiber and CO2 combination laser cutting machine which for metal and nonmetal cutting.If you want to find one machine, but both can cut metal and nonmetal in China, We have absolute authority that our machine is better than others'. You can contact us to get more details.
