- 商家货号:COB-P0.9375
- Brands:

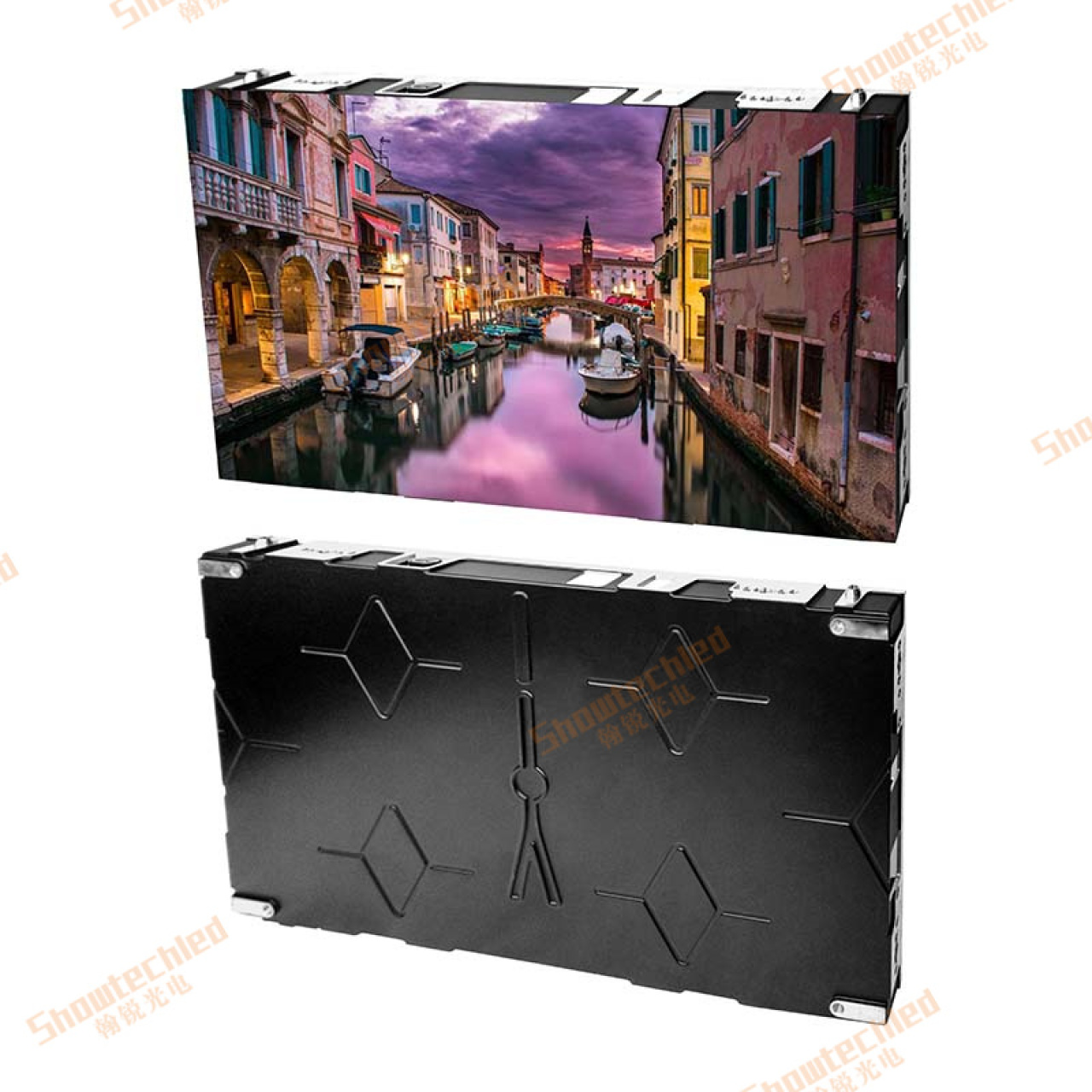

Showtechled COB ultra micro pitch HD series indoor fixed LED display hd small pitch ultra-light ultra-thin screen selling points:
1. Features:
1) RGB full filp chip;
2) Excellent hardware protection(anti-knock,waterproof,anti-static,scrubbing);
3) Ultra-high brightness,contrast,gamut and ink at one time;
4) The extinguishing screen mirror black and bright,comparable to the appearance of the LCD screen;
5) Rohs complant.
2. Application:
1) Commercial display
2) Special consumer display
3) General use
3. Product Parameters:
点间距/Pixel Pitch(mm) | 0.781 | 0.9375 | 1.25 | 1.5625 |
像素密度/Density(㎡) | 1638400 | 1137777 | 640000 | 409600 |
封装方式/ Packing mode | 倒装COB/Flip COB | |||
模组尺寸/Module size | 150*168.75 | |||
箱体分辨率/ Cabinet pixel(dots) | 768*432 | 640*360 | 480*270 | 384*216 |
箱体尺寸/Cabinet size(mm) | 600*337.5*31 | |||
防护等级/ Degree of protction | IP54 | |||
维护方式/ Matntenance mode | Front/Rear Maintenance | |||
亮度/Brightness(cd) | 50-1200 | |||
视角/Viewing Angle(°) | 178/178 | |||
对比度/Contrast ratio | 1000000:1 | |||
平均功耗/Max Power | 200 | 180 | 160 | 150 |
最大功耗/Age | 400 | 350 | 330 | 300 |
刷新率/Refresh Rate(hz) | 1920-3840 | |||
典型寿命/Typical life(hrs) | 100000 | |||
工作温度/Working temperature | 0℃-60℃/10-80%RH 无凝结 |
