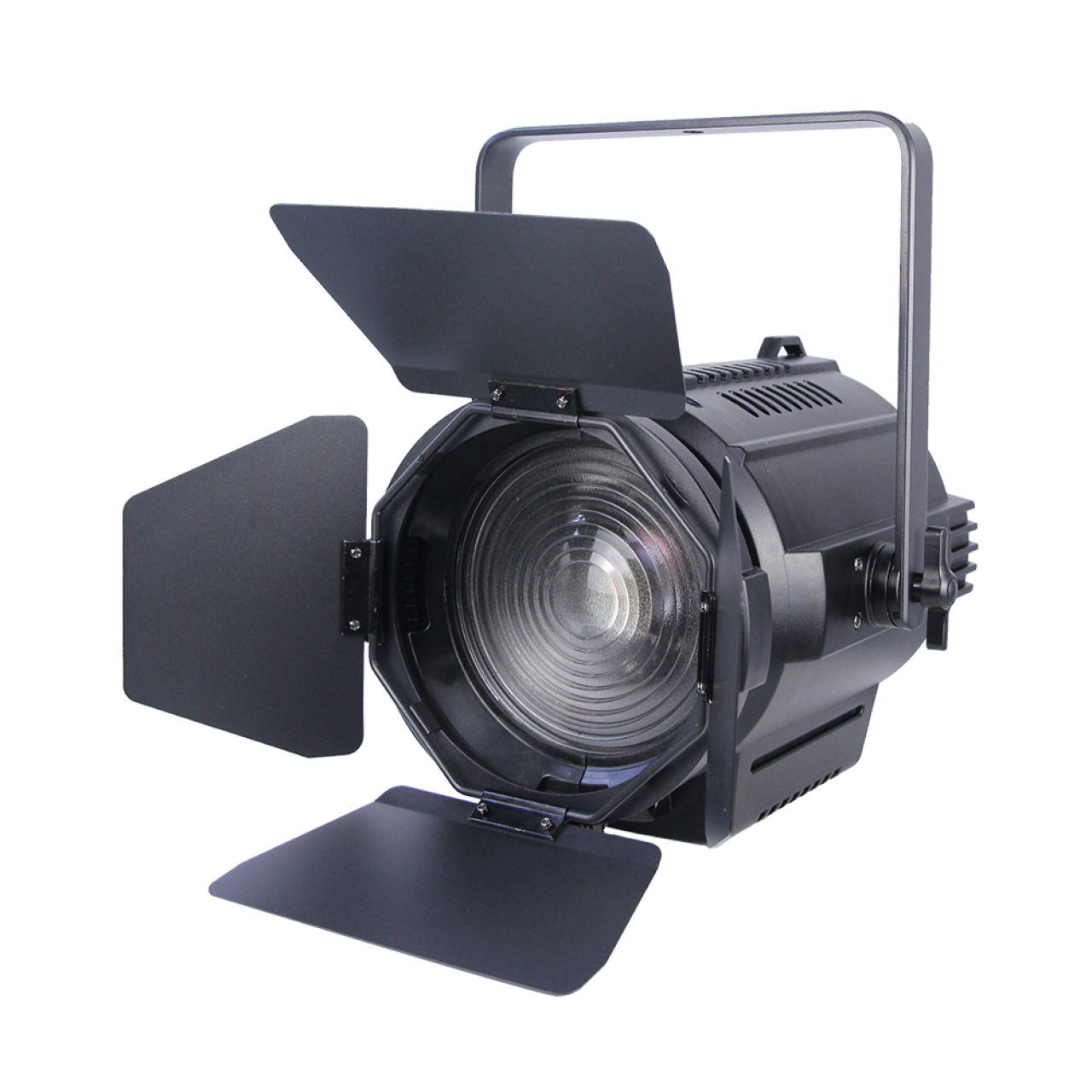

200W Bicolor LED Fresnel Spot Light

·This new designed television projector fresnel spotlight equips high power 400W(200W warm white+200W cold white) LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment;

·High CRI and very fine flood spot light which is very suitable for studio room or TV station;

·The light output can reach to 200W fully.

Technical Specifications

Light Sources

·LED: 1pc 400W(200W Warm White+200W Cold White) COB LED Lamp

·Lifespan: 500,000h

·Color: from warm white to cold white

·Light output: 200W(3200-5600K keep 200W)

Optics

·Beam angle: 15-60degree

·Dimmer: 0-100% linear dimmer

·CRI: Ra≧97

·TLCI: ≧95

Light Output

·Illuminance: 14500lux (1m 15°, 3200K); 20000lux(1m 15°, 5600K); 4000lux (1m 60°, 3200K); 6000lux (1m 60°, 5600K);

·Optimal projection distance: 3-8m

Control

·Control mode: DMX-512; Auto run; Artnet;

·DMX channel: 4CH, 5CH

·Display of control panel: LCD display + 2 rotation knob

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 250W

Construction

·Body dimension: D309*W321*H266mm

·Net weight: 8.2kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: Radiator and Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Selling Maintain Spare Parts List

·Switching power supply: VG-CB400W-C-P

·LED lamp board: VG-CB400W-C -L

·Main board: VG-CB400W-C-M

·Drive board: VG-CB400W-C-D
