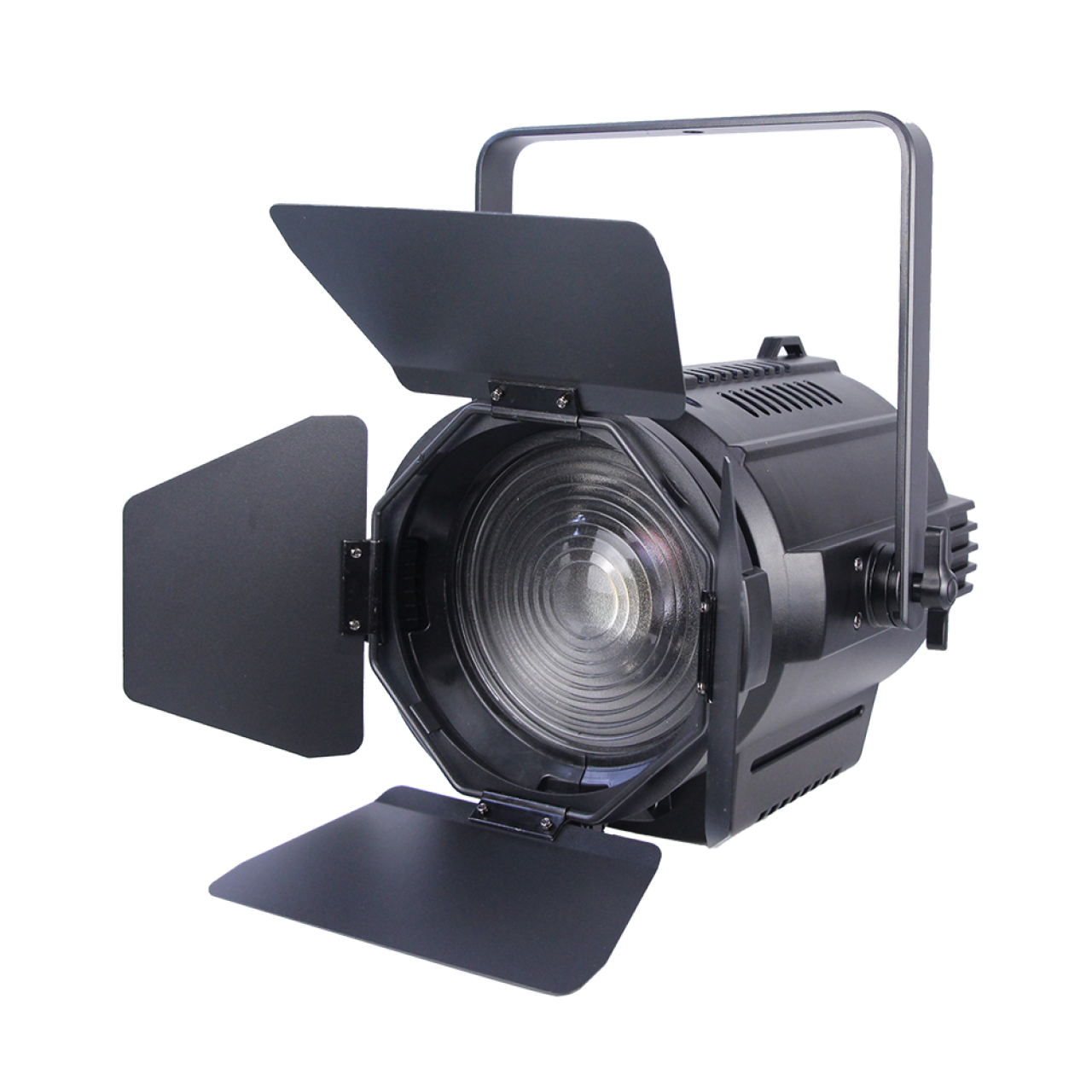

·This new designed motorize zoom television projector fresnel spotlight equips high power 200W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment;

·High CRI and very fine flood spot light which is very suitable for studio room or TV station.

Technical Specifications

Light Sources

·LED: 1pc 200W COB LED Lamps

·Lifespan: 500,000h

·Color: CW, WW optional

Optics

·Beam angle: 15-60degree

·Dimmer: 0-100% linear dimmer

·CRI: ≧97Ra

·TLCI: ≧95

Light Output

·Illuminance: 2700 Lux (6m 15°)

·Optimal projection distance: 8-15m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 2CH, 3CH

·Display of control panel: digital tube

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 250W

Construction

·Body dimension: D309*W321*H266mm

·Net weight: 7.8kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: Radiator and Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Selling Maintain Spare Parts List

·Switching power supply: VG-CB200W-D-P

·LED lamp board: VG-CB200W-D-L

·Main board: VG-CB200W-D-M

·Drive board: VG-CB200W-D-D
