- 商家货号：JHX-300200S
- Brands：
| Product Model: | JHX-300200S | Laser Type: | Hermetic And Detached CO2 Laser Tube |
|---|---|---|---|
| Laser Power: | Option: 100W/130W/150W | Working Area(mm): | Option:1800*4000/3300*1500/3300×3000/3300*5000/3200*8000/3000*2000/1600*1000 |
| Software: | JHX Professional Controlling Software | Cutting Power Control: | Fine Tuning Possible |
| Moving System: | Imported Servo System | Auxiliaries: | Wind Pump, Wind Pipe Etc |
| Data Format: | AI、BMP、PLT、DXF、DST | ||
| High Light: | laser cutter bed,flatbed laser cutting machine | ||
Automatic Carpet Laser Cutter for Logo Mat cutting Bed machine JHX-300200S
DESCRIPTION

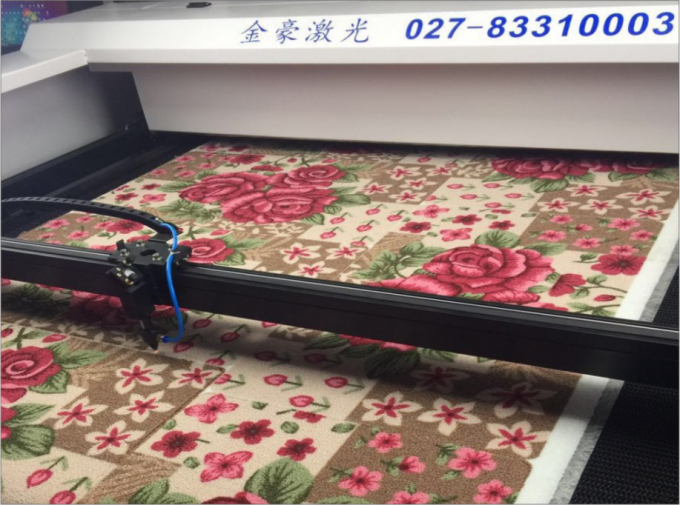

The carpet laser cutting machine cuts different format and different sizes of all carpet materials. Its high efficiently and high performance will improve your production quantity, save time and save cost.
Features
1.Supporting multi-sources date forms: AI,BMP,PLT,DXF,DST,and other picture and image forms;
2.It can cut the images, and also it can line, cut and engrave the vector graphics, the engraving accuracy can be regulated
3.One machine can finish the job of two single-head machine, you can profit double;
4.To ensure the laser strength and make the processing depth is same;
5.The log output to count process time and working time
6.The optimized optical, double heads can mutual move, and it can adjust working area, easy to operate and save the materials;
7.The cutting aperture is slight, and without scorched or brown edges, and it can lock stitch automatically;
8.Smooth edge, no noise and dirt, high-speed cutting, high accurate process, no waste.
Material & Application
For cutting all kinds of marks like leather: wool fabrics,cloths,wooden products,plastics,rubber etc.
Textile embroideries,clothes,leather,cloth toys,computer embroideries cutting,cloth embroideries,shoes ,hot drill,light hollowing industry; Handicrafts , models, ads, decorations, electrical equipment, acrylic plates, medium-density decoration plates industry.
Technical specification
| Model | JHX-300200S |
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | 100W/130W/150W |
| Cutting speed | 8000-48000mm/min |
| Working Area(mm) | Option:1800*4000/3300*1500/3300×3000/3300*5000/3200*8000/3000*2000/1600*1000 |
| Cooling | Water-cooling |
| software | JHX professional controlling software |
| Positioning accuracy | ≤±0.01mm |
| Working Voltage | 220V±10%, 50-60HZ |
| Data Format | AI,BMP,PLT,DXF,DST |
| Auxiliaries | Wind pump, Wind pipe etc |
APPLICATION VIDEO
COLLOCATION

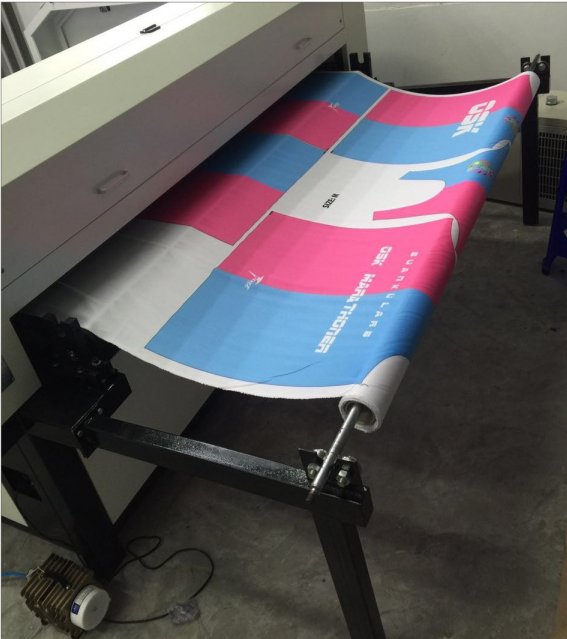

Manual Feeder Auto Feeder

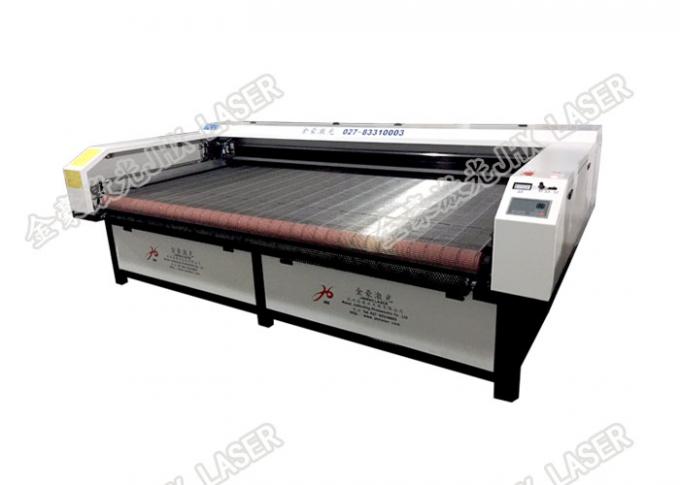

Automatic Carpet Laser Cutter
OPTIONAL

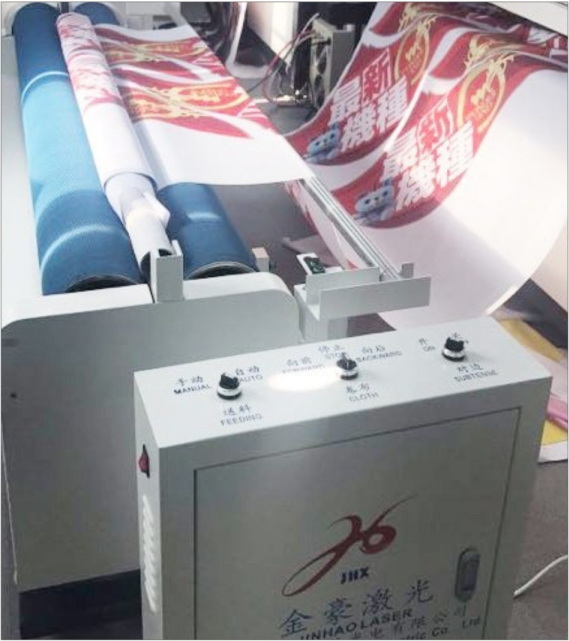

Auto two layer feeding
Adopting specialized material transmission advice ,the multilevel and seriate cutting can be realized.

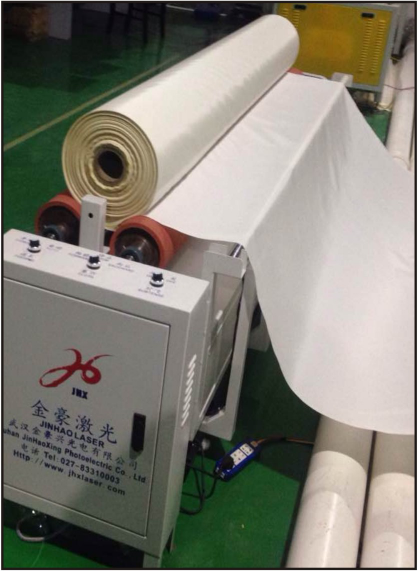

Auto feeding -single layer feeding
Company Profile
JHX laser has become the leading brand in the global market, JHX laser products are the top position in apparel industry application.
In customized apparel application, JHX laser solution has been successfully applied to many characteristic field .
Certifications
Product packaging and delivery
Exhibition
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose? Very easy to choose. Just tell us what you want to do by using this machine, then let us give you perfect solutions and suggestions. 1)Your materials. 2)The size of your material:___mm*___mm 3)You want to engrave or cut? If cut, what's the cutting thickness? Q2: How long is the delivery time? For standard machines, it would be 7-10 workdays; For non-standard machines and customized machines according to client s specific requirements, it would be 10 to 15 workdays. Q3: Are you a Factory or Trading company? We're a professional manufacturer with export license.
