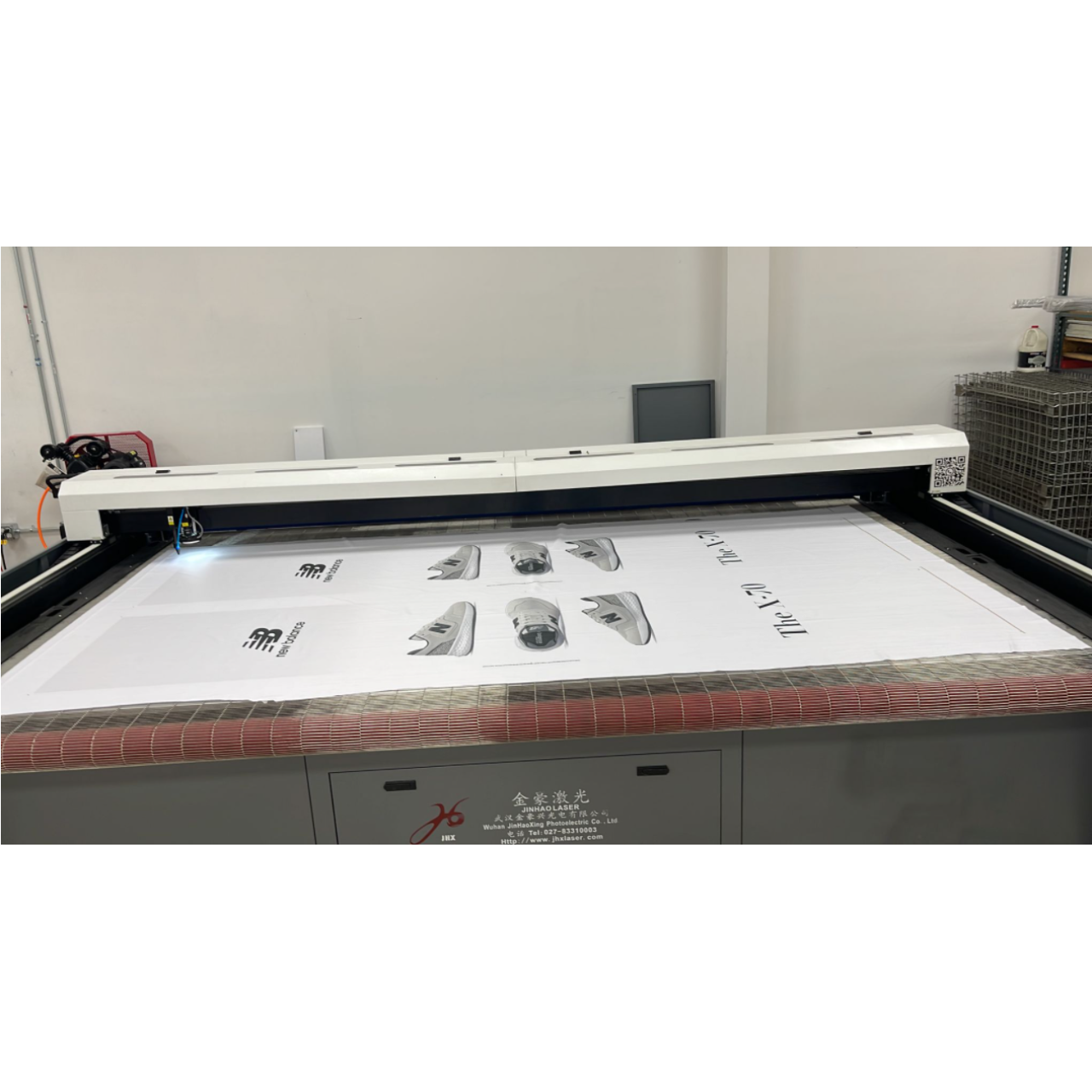

Automatic Large scale visual edge tracking laser cutting machine

Large format laser cutting machine for trade show, display, flag, banner, tent cutting

Technical Parameters

Single cutting area: Option:1600*1000/2600*1000/3300*1500/3300*3000/3300*3700 mm

Laser tube power: Option:100W/130W/150W

Cutting speed: 10-60 m/min

Working voltage: AC220V±5% / 50Hz

Machine power: 4500W

Working table: Conveyor, partitioned negative pressure adsorption working table

Moving System: Jhx digital control sytem

Cooling system: Constant temperature circulating water chiller

Software: Jhx self developed , free of charge upgrading in future

Support image format: XML, PLT, DXF, AI, etc.

Product Features

1. It can be used for high-speed automatic cutting for large, medium and small quantity or single-scale customized cutting. The cutting speed can reach 10-60m/min, saving time and high efficiency.

2. Compatible with XML, PLT, DXF, AI image formats, one machine multi-purpose using.

3. Support single frame positioning and cutting, not affected by material thermal effects, 1:1 cutting output precision size, with automatic feeding device(optional), can achieve unattended continuous cutting.

4. Suitable for automatic continuous cutting for large format and special-shaped display such as light box fabric, hanging picture and knife flag.
